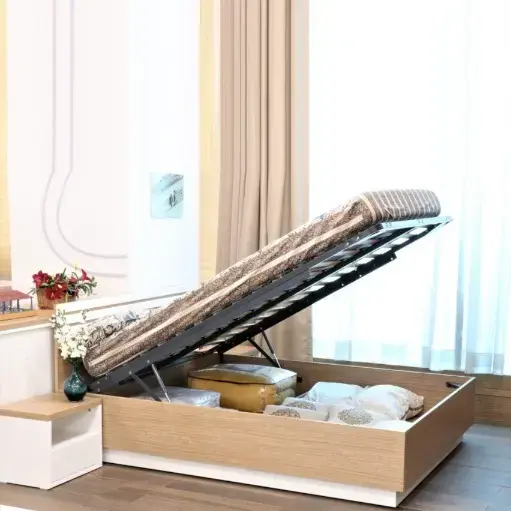

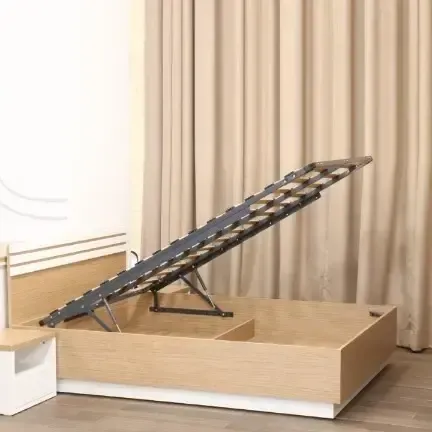

EBCO Pro-Lift Bed System (Lift System, frame with Slats and Mounting Bracket Kit. Without Gas Lifts)

Fitting instructions :-

1. Insert Plastic Corner in Square Pipe & Ensure that holes for Bed Fitting are on the inner side of Frame as shown in Fig.1a.

   Screw M8 x 40 to the Bracket & Support Pipe as shown in Fig.1b & 1c with help of Allen key & wrench.

2. Kindly identify Left L & Right R pipe as depicted above

3. Fit the Slat in Single & Double Plastic Cap and fix on the frame with the help of Plastic Hammer as shown in Fig.2.

4. Fit the Fix Bracket on bed frame as per dimensions. (Ref. Fig.3) without the gas spring fitted.

5. Fit Frame onto Bed Fitting with help of Screw & Nut as shown in Fig.4.

6. Lastly fit the gas spring & Stopper Lever as shown in diagram (Ref. Fig.5).

7. Bed Frame Support can be fitted as per user convenience (Ref. Fig.4).
